Portable Telescopic Mast Systems
A lightweight mast that responds to user feedback with
a portable telescopic mast system.
TPM Mast Series [Pneumatic]
Lightweight and high durable and can be installed everywhere.
High durable and lightweight
Made of aluminum and sufficient durable. Because it is lightweight, one person can carry and oparate it.
Lifting easily, can be installed in tight spaces.
By using footpomp, mast rises easily. 4-legs stand or Tire stomping stand can be installed and can install in tight spaces.
The most suitable for degital wireless antennas and antennas of the base stations.
Because of easy to move and install,suitable for digital wireless antennas and antennas of the base stations.
Usage example

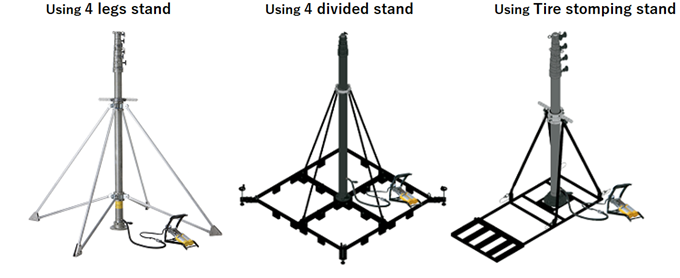

System configuration
-
- 4 legs stand
For portable. When you use this, please use guy assembly.
- 4 legs stand
-
- Guy assembly
"Prevent for overturning mast, please stretch the ropes 3 directions when mast operates.rope+turnbuckle+stake"
- Guy assembly
-
- Footpomp
This provides air to pneumatic mast and rises mast.
- Footpomp
-
- Tire stomping stand
By vehiecle of a tire trample a stand and make it stable.
Usage image
- Tire stomping stand
-
- 4 divided stand
For portable. On all sides, jack are mounted and can adjust their angles.When you use this, please use guy assembly.
- 4 divided stand
-
- Rotation handles
(Options)
Assistant tool. Rotate mast horizontal directions.
- Rotation handles
-
- Cable guides
(Options)
These guides assist a cable to line along mast and access an equipment which is mounted on head of mast.
- Cable guides
-
- Castor stand with jack
(Options)
For portable. Easy to move by castors. There are jacks so you can operate even if it’s not some extent level.
- Castor stand with jack
-
- Storage bag
(Options)
This case is for a stand and a mast.This is made of canvas.
- Storage bag
Specifications
Model | Max. extension length (mm) | Min. contraction length (mm) | Mast top outer diameter (mm) | Mast bottom outer diameter (mm) | Mast unit weight (kg) | Max. load weight (kg) | Stage No. indication (stage) |
---|---|---|---|---|---|---|---|
TPM- 8 | 7,975 | 1,508 | φ32 | φ74 | 10 | 10 | 7 |
TPM-10 | 10,060 | 1,790 | φ32 | φ74 | 12 | 8.5 | 7 |
TPM-12 | 12,050 | 2,060 | φ32 | φ74 | 14 | 7 | 7 |
