Radio Wave Measurement Telescopic Mast System
Enables stable operation of radio wave measurement equipment
and accurate position control.
Radio Wave Measurement Telescopic Mast System
A maximum height of 9.2m(10m when mounted on vehicle) with a product weight of only 35 kg.
Y3509H
Enables stable operation of radio wave measurement equipment and accurate position control.
This highly durable mast is strengthened against wind and enables the stable operation of radio wave measurement equipment.
A remote controller for lifting and lowering the mast features a digital height display that is accurete to the tolerance within 10cm for accurate position control.
The quiet design also makes the mast usable even at night.
Mast extension and contraction are controlled via a hydraulic power unit, achieving quiet operation that makes the mast usable even at night.
When still, the mast is silent and requires no electricity, which means energy savings.
A narrow outer diameter and inner rod design enables a lightweight, space-saving system.
A narrow outer diameter achieved by a highly durable structure and an inner rod system to reduce hydraulic fluid volume to a minimum.
Not only do we achieve a lightweight mast, we achieve overall system weight reductions and space saving.
Usage example

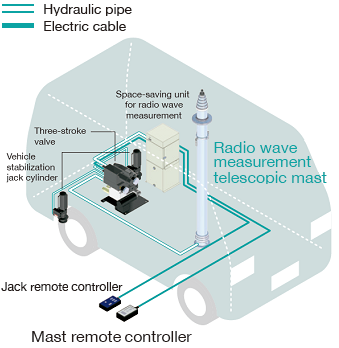

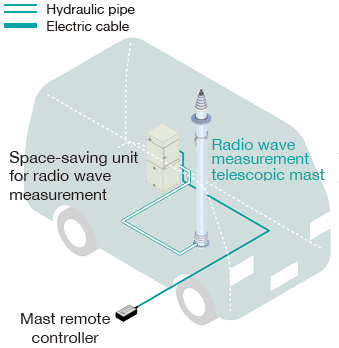

System configuration
-
- Space-saving unit for radio wave measurement
All-in-one system that combines the mast, jack cylinder control board, and hydraulic power unit.Installation only requires connecting the mast to the hydraulic piping and electrical wiring. The addition of a valve is required to use a jack cylinder.
-
- Mast remote controller
Remote controller for lifting and lowering the mast and to stop the mast at the desired location. Height shown on digital display.
-
- Vehicle stabillization jack cylinder
DJ2or4／SJ2or4
A jack cylinder with a hydraulic motor that prevents vehicle movement to stabilize the vehicle. Size and stroke can be chosen based on the vehicle type.Two types available:two rear cylinders or four cylinders front and rear.
-
- Three-stoke valube(for dual cylinder)
A three-stroke valve for operating the vehicle stabilizing jack cylinders.Five-stoke valve when using four cylinders.
-
- Jack remote controller
Remote controller for jack operation. In addition to ON/OFF control, the remote controller enables you to extend and contract left or right individually or extend and contract the entire unit. When using four cylinders, you can switch between front and rear jacks.
*System configuration diagram images may differ from actual product.
*Optional configurations such as the addition of a power switch are available for the remote controller.
*Optional configurations not listed here, such as the addition of a remote control cable relay, are also available.
*Choose from 12V DC, or 24V DC, or 200-230V AC for the power.
Specifications
-

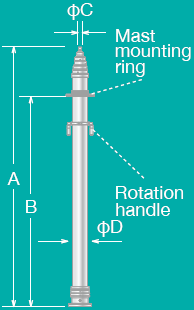

Rotation angle adjustment dial

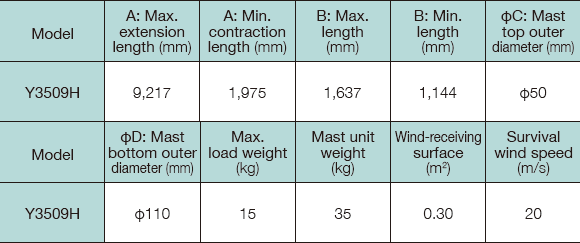

- Radio wave measurement telescopic mast specifications
-
*Specifications and perfomance are subject to change without notice.
*Indicates mast weight when dry.
*Wind-receiving surface:Surface area of the object mounted on top of the mast that is affected by wind.
*Survival wind speed:Do not use during wind speeds (m/s) above those indicated in the table.
