Jacklifter
Cranes and forklifts are not necessary. Can be loaded onto a standard
truck with a jack lifter without any assistance.

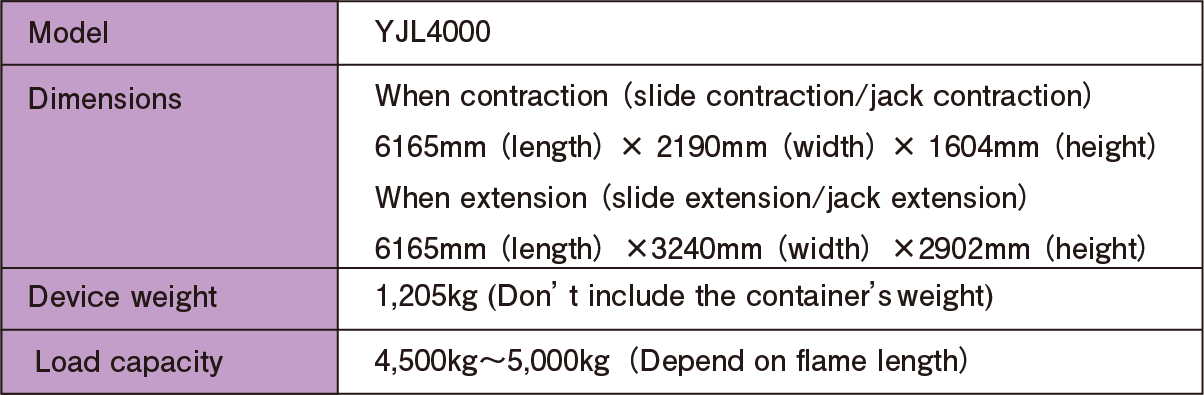

Jack Lifter YJL4000
Cranes and forklift are not necessary.
Can be loaded onto a standard truck with a jack lifter without any assistance.

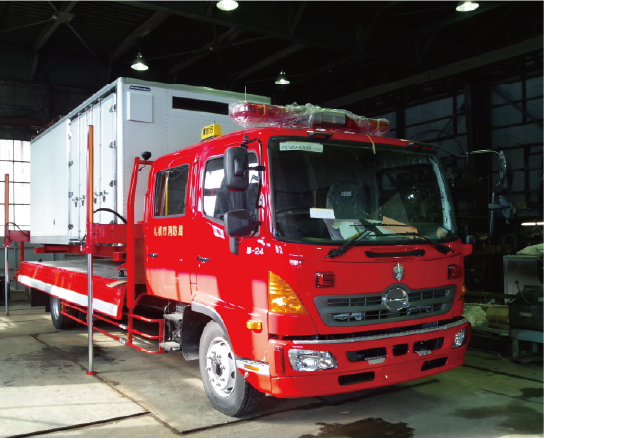

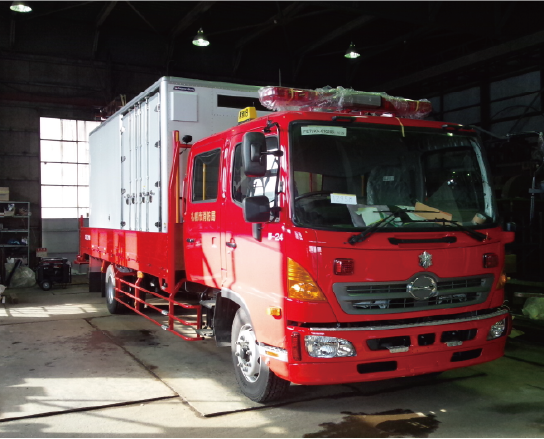

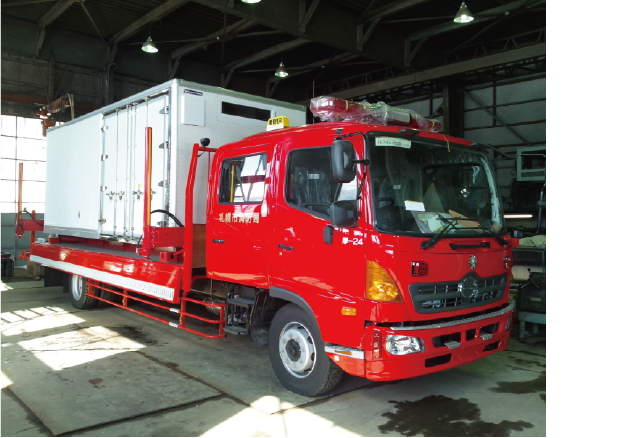

General Truck can move freely by attaching a jack lifter.
By equipping a showroom,storage warehouse or shelter with a jack lifter,
can be loaded onto a standard truck without assistance and moved around freely.
Jacks provide stable ground contact when loading and unloading,
even on uneven surfaces.
These self-supporting jacks are independent and adjustable, and they provide stable ground contact
for loading and unloading, even on uneven surfaces.

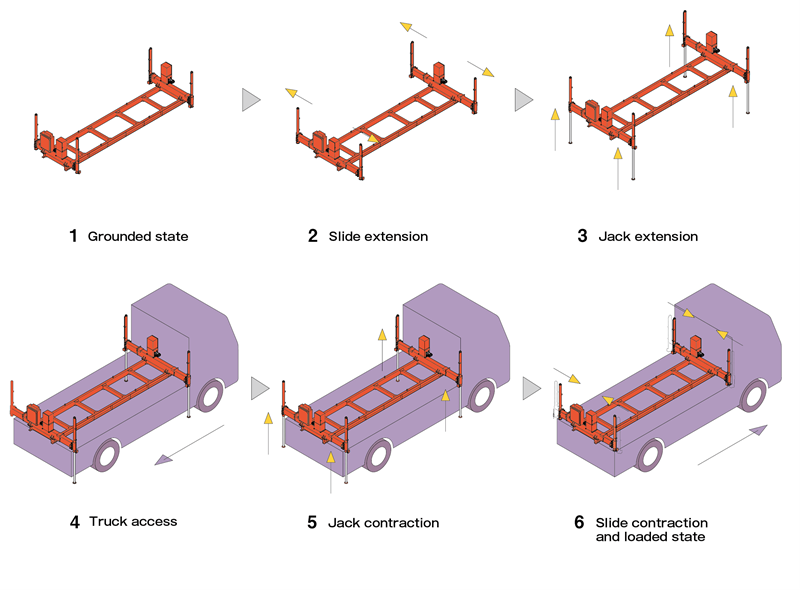

Usage image
The truck will enter under the load that
is being lifted by the jacklifter.
(Left page number 4)
The jacks have been contracted, and
the load is now on the truck.
(Left page number 5)
The slide is retracted and the loading is complete.
(Left page number 6)
※A 200V generator is necessary.(please provide a generator yourself.)

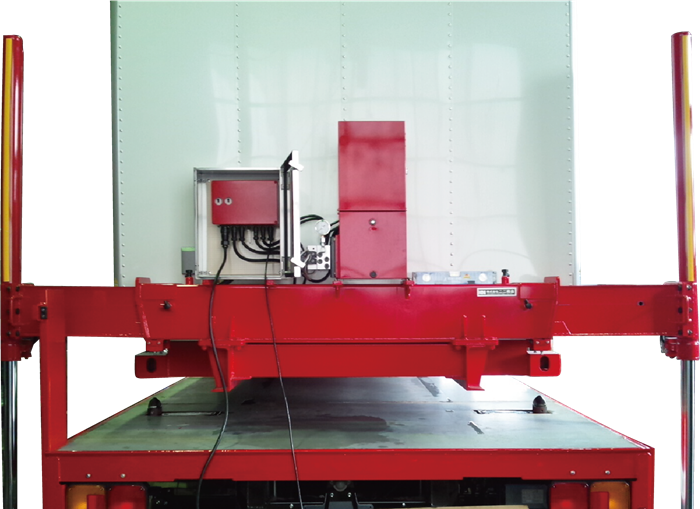

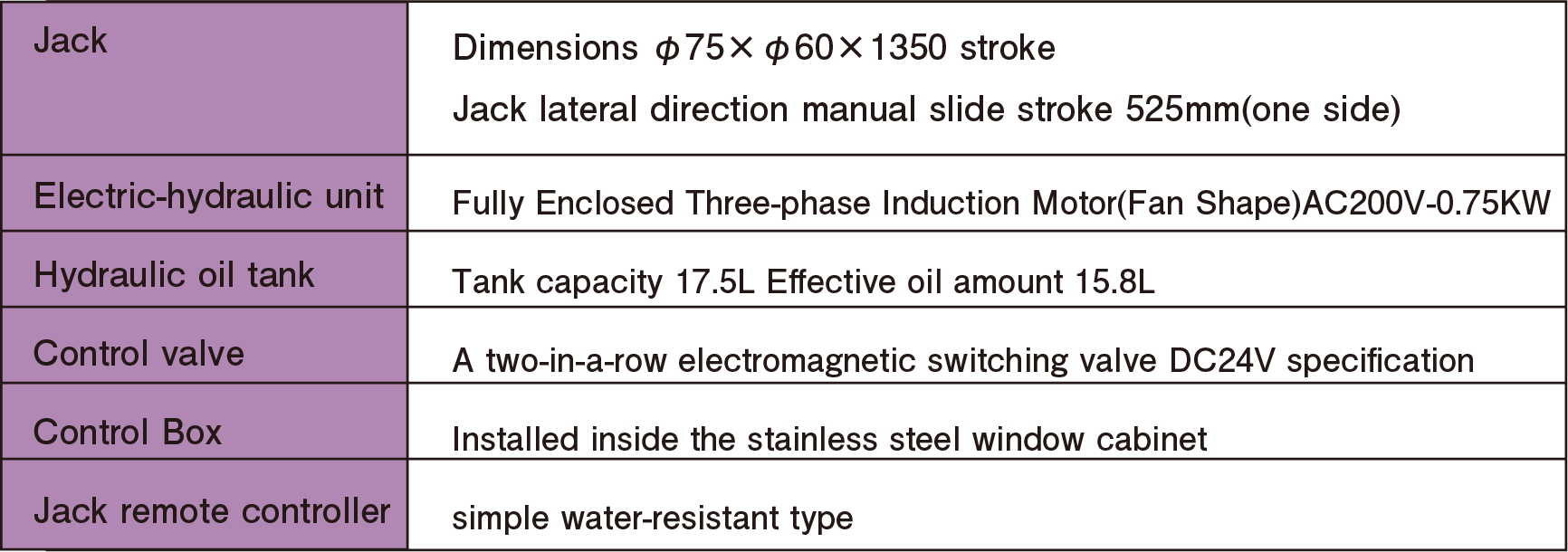

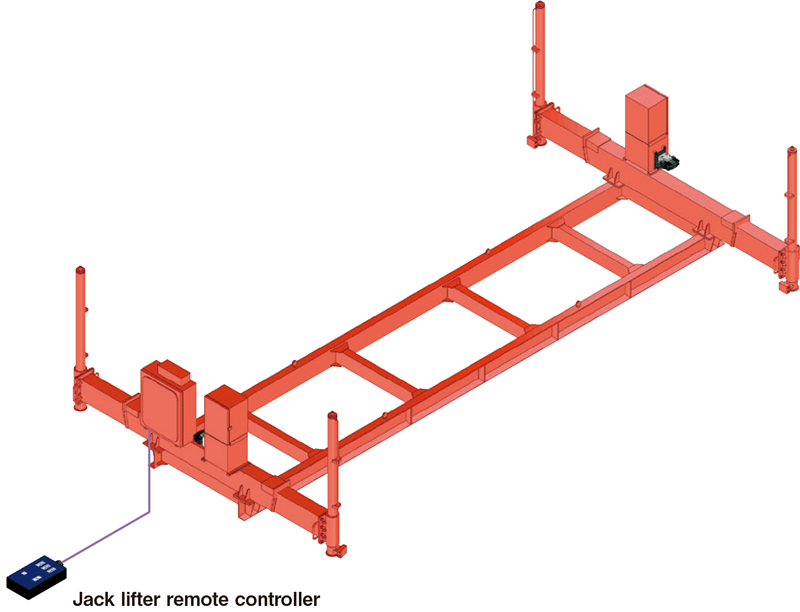

System configuration
-
- Jack lifter remote controller
The jack lifter remote controller is for jack operation. In addition to ON/OFFcontrol, the remote controller enables you to extend or retract the left or right side individually, or the entire.
-
- Hydraulic Power Unit with Valves
Integrated tank hydraulic unit.This unit extends and contracts jack cylinders.
One unit operates two jack cylinders.
A jack-lifter consists of two units.
-
- Control Box
Control Box for controlling jack cylinders.
Connect the remote controller, and the hydraulic unit and use it.
-
-

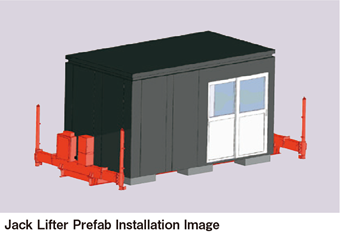

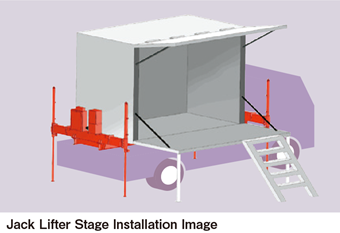

Product image illustration
-
-
*System configuration diagram images may differ from actual products.
*Optional configurations, such as the addition of a power switch, are available for the remote controller.
*Optional configurations not listed here,such as the addition of a remote control cable relay,are also available.
