SWIFT Mast Series [Pneumatic]

Lightweight, durable and can be installed anywhere.

Durable, light weight and easy to carry
Made of aluminum and sufficient durable. Because it is lightweight, one person can carry and oparate it.
3-legs stand can be folded. If use castor of option, it is easy to carry.

Lifting easily. can be installed in tight spaces and sloping places.
By using footpomp and electric pomp, mast rises easily.
Tripod stand adjusts each legs of the length and can be installed in tight spaces.

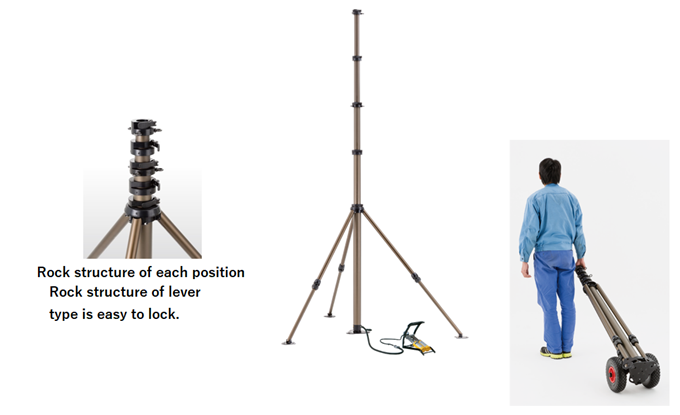

From 4m to 10m mast can be rocked each point easily.
We offer from 4m to 10m, and have 7 types mast in 1-meter increments.
Each lock structure is more easier than conventional.

Usage example

• For wireless communications (telecommunications companies)
  SWIFT-5
• For wireless communications (telecommunications companies)
  SWIFT-5
• For surveillance cameras (Security Companies)
  SWIFT-5
• For surveillance cameras (Security Companies)
  SWIFT-5

System configuration

• •
  • Guy assembly
    Prevent for overturning mast, please stretch the ropes 3 directions when mast operates.rope＋turnbuckle＋stake
• •
  • Footpomp
    This provides air to pneumatic mast and rises mast.
• •
  • 3 legs stand
    3 legs stand can be folded and each leg can adjust separately.
• •
  • Castor for 3 legs stand
    This is the castor to carry 3 legs stand which is folded.

Specifications

•
•


Model	Max. extension length (mm)	Min. contraction length (mm)	Mast bottom outer diameter (mm)	Mast unit weight (kg)	Max. load weight (kg)	Stage No. indication (stage)
SWIFT-4	4,000	1,300	φ74	13	10	3
SWIFT-5	5,000	1,400	φ74	13.5	10	4
SWIFT-6	6,000	1,500	φ74	14.5	10	4
SWIFT-7	7,000	1,600	φ74	15.5	10	5
SWIFT-8	8,000	1,600	φ74	16.5	8	6
SWIFT-9	9,000	1,600	φ74	17	8	7
SWIFT-10	10,000	1,700	φ74	18	8	7
