Portable Telescopic Mast Systems
A lightweight mast that responds to user feedback with
a portable telescopic mast system.
STORM Mast Series [Mechanical]
Loading capacity 35kg /50kg /75kg
Winch drive makes easy manual lifting and lowering.
A mixture of glass fibre and carbon enable to be durable and rigid, it's able to lift and lower maximum 75kg.
Adjust to loaded weight, 15 different masts from 6m to 18m,It can be used for a variety of purposes by the tip flange.
We offer a total of 15 mast models;
5 models 35kg loading capacity, 5 models 50kg loading capacity, 5 models 75kg loading capacity.

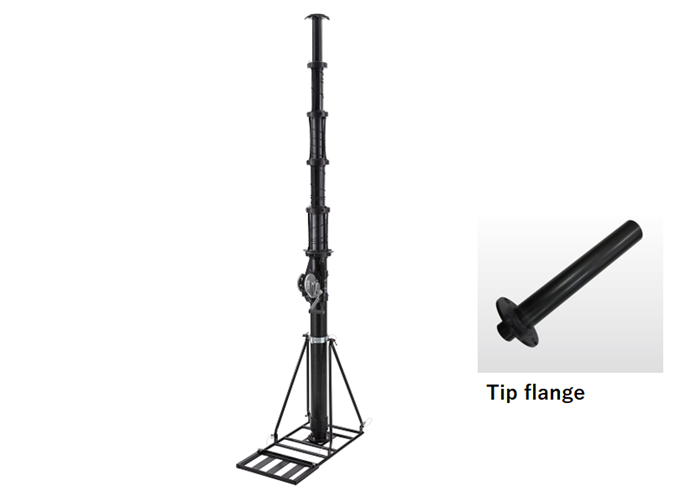

This tip flange can hold various types of equipment, making it suitable for variety of methods.
Usage example
-
For base station(Telecommunications companies)
ST5-6 -
For transmission(Government offices)
ST5-6 -
For overlooking camera(Security companies)
ST5-6 -
System configuration
-
- Tire stomping stand
By vehiecle of a tire trample a stand and make it stable.
-
- 4 divided stand
For portable. On all sides, jack are mounted and can adjust their angles.When you use this, please use guy assembly.
-
- Manual winch
By a winch, easy to lift. Belt lock structure enables to lift to your desired position.
-
- Storage bag
(Options)
This case is for a stand and a mast.This is made of canvas.
Specifications
| Model | Max. extension length (mm) | Min. contraction length (mm) | Mast bottom outer diameter (mm) | Mast unit weight (kg) | Max. load weight (kg) | Stage No. indication (stage) |
|---|---|---|---|---|---|---|
| ST5-6 | 6,000 | 1,670 | 128 | 21 | 35 | 5 |
| ST5-9 | 9,000 | 2,200 | 128 | 25 | 35 | 5 |
| ST5-12 | 12,000 | 2,700 | 128 | 29.5 | 35 | 5 |
| ST5-15 | 15,000 | 3,210 | 128 | 33.5 | 35 | 5 |
| ST5-18 | 18,000 | 3,740 | 128 | 37.5 | 35 | 5 |
| ST5-500-159-5 | 5,000 | 1,590 | 128 | 23 | 50 | 5 |
| ST5-750-216-5 | 7,500 | 2,160 | 128 | 27 | 50 | 5 |
| ST5-100-265-5 | 10,000 | 2,650 | 128 | 31 | 50 | 5 |
| ST5-125-315-5 | 12,500 | 3,150 | 128 | 35 | 50 | 5 |
| ST5-150-368-5 | 15,000 | 3,680 | 128 | 38 | 50 | 5 |
| ST5-400-153-4 | 4,000 | 1,530 | 128 | 20 | 75 | 4 |
| ST5-600-210-4 | 6,000 | 2,100 | 128 | 22 | 75 | 4 |
| ST5-800-260-4 | 8,000 | 2,650 | 128 | 27 | 75 | 4 |
| ST5-100-309-4 | 10,000 | 3,150 | 128 | 30 | 75 | 4 |
| ST5-120-362-4 | 12,000 | 3,680 | 128 | 34 | 75 | 4 |
